WM Capture 7 User Guide
Welcome to WM Capture, the only on-screen video recorder specifically designed for high-speed video capture. With WM Capture, you can turn anything you see on your PC’s screen into a high quality video file you can play anywhere.
WM Capture is especially well suited for recording:
Movies and Videos. Including Copy Protected Video
Streaming Web Cams and Video Chat
Powerpoint Presentations and Documents
And any other video you can’t otherwise capture.
High Quality Recordings
Capturing and compressing on-screen video in real time can require a lot of your PC CPU power. WM Capture is specially designed for this task, as it uses special high quality MPEG-2 and WMV codecs that give perfect looking recordings of videos without freezing up your PC.
To make it easy to capture a portion of your screen, WM Capture can often automatically locate the region of your screen where video will be played. Or, you can choose to mark an area of the screen manually by moving markers yourself. Either way, setting up your recording area is a snap.
Windows XP-SP2, Vista, Windows 7, Windows 8 (Desktop mode), Mac (with Bootcamp or Parallels installed)
CPU Speed: 2.0 GHz dual core recommended, 2.8GHz single core.
RAM memory: 512 MB or higher
Recommended with XP Computers: Sound Card with a recording line (Stereo Mix, Master Volume, Wave Out Mix, What U Hear or similar)
WM Capture 7 cannot be installed on a user account that does not have administrator privileges. The program should only be installed on the administrator account however all clients will automatically get shortcuts if the option “Make shortcuts available to all users” is checked during the installation. Every user has his own recording folder and settings. Only the administrator can uninstall the program.
Background Mode (BCK)
This is a new way of recording video from your computer screen introduced by WM Capture. The recorded video doesn’t need to be visible anymore. In Background mode you can hide the recording window and use the screen for running other programs. You can read your email, write documents or search the web while recoding your video in the background. No other screen capture program offers this groundbreaking feature at the present time.
You can use the Show/Hide button to hide/show the recording window.
The BCK mode can considerably decrease the CPU loading and such higher frame rates can be achieved when recording large video windows especially high definition (HD) videos. This makes high quality screen recording possible even on slower CPU’s like those used in Microsoft Surface Pro or other Windows tablets.
Note: the recoding window cannot be minimized. Do not click the icon of a recoding window in your taskbar as this usually minimizes a Window program. If you’re recording from your browser and you want to open another browser instance click the Browser button from WM Capture main screen (see the image below)
In some cases, it may be necessary to include WM
Capture in your anti-virus allowed programs in order to enable the BCK
limitations: On some Windows 8 computers the BCK mode does not work with Internet
Explorer 10. However other web browsers like Chrome and Firefox can be
used. The BCK mode may not work with some computer DVD players.
Thumb Drive “Invisible” Mode
This is another new, unique feature introduced by WM Capture 7. When you enable the Thumb Drive mode you can move the program from one computer to another without the need for another installation. Once you remove the drive there are no traces you’ve done any work on that computer. So if your company does not allow installation of any programs on company’s computers or you want your recording activity to be private you can still capture videos from any computer screen with no hassles and no need for new installations.
To enable the Thumb Drive mode follow the steps below:
Click the question mark (Help) on WM Capture window then click Enable Thumb Drive mode. The external drive installation dialog opens.
Plug your thumb drive and click DRIVES until your drive name is listed. Then select the drive and click Install.
WM Capture installs the folder “WM CAPTURE” and the shortcut “WM CAPTURE shortcut” on the root of the drive. If your program is registered the registration code is also installed on the thumb drive. To run the program plug the thumb drive into any Windows computer USB and click the “WM CAPTURE shortcut”. The recorded files are saved on the folder WM CAPTURE\WMC Recordings located on your thumb drive.
Note: If you want to record high quality videos you may need to have a higher speed and higher capacity drive. In this regard it may be better to use external hard drives than thumb drives due to their higher speed and storage capacity.
How to Record in Just Two Clicks (no setup required)
Open WM Capture (if you’re running Windows 7/Vista your desktop theme is changed to Windows Basic. The Basic theme enhances the performance characteristics (speed) of your system. Your current theme will be restored when WM Capture closes.)
Begin playing a video from your browser or media player
Click Get Video to automatically find the video on your screen and mark the video window. A transparent window is now shown over the video area (see below). You can resize or move this window to fine tune the recording area or click Retry to redo the detection.
Click Record to begin recording.
How to Set up WM Capture
For regular PC recordings there is no setup required.
Using the default video format Windows Media Player you record videos that
can be played back on any Windows / Mac computers or converted to other
video formats. If you need to transfer the recorded video to your mobile
device use WM Converter to convert to MP4/iPod/iPhone formats.
Click Settings on WM Capture’s main screen if you’d like to record a high quality DVD / MPEG-2 video, fine tune your video/audio parameters or access other options. In the dialog window select the option you need.
Video Recording Setup
To configure preset video recording settings click Settings, then choose Recommended Settings. Choose
the selection that most closely matches your system:
To make subsequent changes, just click the Settings
button. The Settings dialog appears as shown below.
Video or Audio Bitrate: the higher these numbers the better
video/audio quality but higher file sizes Frames/sec: the higher this
number the better video quality. Note however that the number of captured
frames per second depends on your computer properties (speed, memory, etc)
and cannot always be setup to the desired value. Set Top Window: makes WM Capture
main screen invisible to recording (when Basic Windows theme is used) Video Format: use MPEG-2 for
high motion videos (movies), Windows Media for webinars, documents, full
screen/low motion video, small size recorded files, MPEG-4 (MP4) for
iPhone, iPad, iPod, Android devices or for YouTube submissions.
How to Record a Video
First, you need to mark a region of the screen to
record as a video, and then you can start, stop or pause
Important Note: In almost every
situation, you don’t need to record the entire screen to get the best video
quality. Most video sources broadcast at no more than 640×480 pixels, and
then up-scale the video to fit a full screen. This means that you can
record at 100% (rather than 200% or full-screen), and get great quality.
Plus, recording from a smaller video rectangle ensures that WM Capture uses
less CPU power, and this makes smaller files and greatly reduces the chances
of dropped frames and choppy recordings.
A simple rule is to select the recording window not
bigger than ¼ of your screen area. If you’re recording a large window
located inside the browser you can use the ZOOM function (Ctrl -) to lower
the size of the browser and the recording square.
Changing Vista and Windows 7 Theme
WM Capture 7 changes the Windows 7/Vista theme from
Aero to Windows Basic. This greatly improves the general speed of your Windows
system by disabling the Aero video effects. The result is a much improved
video capture of your screen. The initial theme is restored when WM Capture
closes. We highly recommend using this feature. If you want different
options open Settings, Tools, Setup Windows theme.
Marking a Recording Region
To change between different marking modes click Settings, Tools,
Setup video detect mode
Version 6 provides a Manual and an Automatic mode to
mark the video recording area. The Manual mode is provided for compatibility
with previous versions. The coordinates of the marked window are shown on
the main screen (xTop, yTop, xBttom, yBottom (width, height)).
Using Get Video
The easiest way to mark a region is to use the Get Video function. Here’s how:
WM Capture can detect motion videos and automatically mark the recording screen area. Begin playing your video then click Get Video. A semi-transparent window marks the video area on your screen. If the marked area is not what you want click Retry to run the detection again or move/resize window to fine tune the marking rectangle. Note that static images cannot be automatically detected.
Note: The automatic detection of the video window is done by a motion detection process. Therefore it is important to play the video before using Get Video. An exception is made when recording YouTube videos. In this case the video window can be detected and marked even if the video doesn’t play.
Click Get Video.
Move the mouse over the window you’d like to record from. As you move the mouse, the recording window will be highlighted.
Once your window is highlighted, click the mouse, and the region is set. It’s that easy!
You can often find a Windows Media Player video window this way, or even locate an application window to record videos from. You can also drag the markers to adjust the recording region. Click Home on the WM Capture main window to remove the marker display.
Manually Marking a Region
Click Mark Video Window. A semi-transparent window is shown on the screen. Move and/or resize this window to fit the video area.
You can also manually drag the markers from WM Capture to the upper left and lower right parts of the recording region. This may be necessary if WM Capture can’t locate the video window, or if you’d like to record a region not defined by a window.
To manually mark a region:
Click Mark Video Window. The current position of the markers appears.
Go to the upper-left marker, and drag it with the mouse to the new top-left corner.
Repeat with the lower-right marker.
Once you’ve marked an area to capture, it’s easy to record from it. Here’s how:
Once you’ve marked an area to capture, it’s easy to record from it. Here’s how:
To start a recording, press the Record button. In a moment, the region you selected will be recorded as a video. As you’re recording, the Record button turns into a Stop button, and Play becomes Pause.
Note that WM Capture main screen is invisible to recording even if the main screen image overlaps the recording area. To change this open Settings and uncheck the box Set Top Window. However, this is not recommended when the Auto detection mode is used.
Hint: You can also start recording by using the keyboard. Press Ctrl+F12 to start and stop recording when WM Capture is open. Click Settings, Tools, Hide WM Capture to enable/disable the keyboard options.
Important Note: The recording quality is highly depended on the frame rate that can be sustained by your computer. Normally this should be higher then 20 frames per second (fps). In the above picture 25/17 indicates a preset rate of 25 frames per second and an actual (achieved) rate of 17 frames per second. The ideal situation will be 25/25. To achieve a higher frame make sure your recording window size is not much higher than 640×480 (about ¼ of a regular screen size) and your Windows theme is set to Basic for Win7/Vista computers.
Pause and Restart
If you’d like to pause recording, click the Pause button. Click Restart to resume recording. You can also use Ctrl+F11 to pause and resume recording.
Click Stop to end the recording. Your recorded file is saved.
How to Prevent Your Computer from Going to Sleep
To prevent computer for going to sleep enable the Keep Alive option in Settings, Tools, Miscellaneous, Keep Alive.
Recording High Definition Videos
High definition video (HD) involves display resolutions of 1,280×720 pixels (720p) or 1,920×1,080 pixels (1080i/1080p). WM Capture can record these resolutions provided that your computer has sufficient speed and memory. Usually a dual core 2.4 GHz / 4G RAM should be able to handle the 720p requirements. Use MPEG-2 video format (not DVD), 6000 kbps video bitrate and 192 kbps audio bitrate. For over one hour recordings expect the file sizes to be in excess of 4 GB.
How to Record from DVDs
Recording from DVDs is easy using WM Capture. Here’s how to do it:
Insert the DVD into your PC, and play it using Windows Media Player.
Once the DVD starts playing, resize the Windows Media Player window to approximately 1/4 of your screen. The size of the video window should be as close to 640×480 pixels as possible.
Click Get Video in WM Capture, and move the marker over the video window in Windows Media Player.
Once the video window is highlighted, click the mouse. This sets the recording region.
Click Record, and play your video.
Click Stop when finished.
Note: You are legally allowed to record clips from DVD’s for your own personal use. WM Capture is not intended to be a way to circumvent copy protection on copyrighted DVD’s.
Recording to DVDs
WM Capture can write to DVD format and create ISO files, which are easily burned to DVD using any DVD burning program. To record a video in DVD format
In Settings select the DVD format, TV standard and aspect ratio. The video bitrate is calculated to fit a 4 GB DVD in relation to the recording time specified.
Start recording. When recording is finished click View then right click the recorded file name (file name extension must be .dvd.mpg – do not change this extension).
In the pop-up menu select DVD then click Make DVD files. The authoring process begins. This makes the ISO folders and the VOB files. The DVD has chapters distanced every 10 minutes but no menus. Therefore the DVD begins playing when inserted in the DVD player.
When authoring is Done click File on the “Make DVD files” window and select Open DVD folder. The two folders VIDEO_TS and AUDIO_TS are the DVD ISO folders.
Insert a blank DVD, open your DVD burner (for example Roxio), set burning type to Data or Data Disc, drag the two ISO folders in the burner window and begin burning the DVD.
Here are some tips on creating the best quality DVD files.
You need to make sure that your computer can sustain a recording frame rate of at least 29.97 for NTSC, 25 fps for PAL. XP dual core computers with CPU speed of 1.8 GHz or higher can easily do this. However, on Vista and Windows 7 you may have to set Windows to “Best Performance” mode instead of “Best Appearance” as shown under Video Capture Options. To check if the DVD frame rate can be sustained, make a short two minute recording, use DVD video format, 6000 kbps, 29.97 fps, 720×480 size. When recording, WM Capture shows the actual achieved frame rate next to the preset rate in the Status window. Make sure the actual frame rate does not go lower. If this happens consistently you can still record DVDs but the video quality may not be as good – especially for high motion scenes.
The recorded DVD file needs to be “authored”. The authoring process creates the DVD folders VIDEO_TS / AUDIO_TS, which may take up to 10 minutes for a 2 hour movie. The DVD folders can be burned as Data Disc using any DVD burner software (a two hour movie takes about 15 minutes to burn.) The recorded DVD does not have a menu so it begins playing when inserted into the DVD player. The DVD video has chapters set every 10 minutes such that the DVD can be quickly scanned in 10 minute increments.
To maintain a reasonable frame rate of at least 20 fps even on slower computers:
The recording video size must be smaller than 1/4 of your screen.
Do not use the Full Screen videos. Always try to make the video window smaller.
If the video plays in a web page use the Zoom function of the browser to make the web page and the video smaller.
How to Capture a Video Frame (snapshot)
With WM Capture, you can capture a frame on screen as an image file using the Still button:
Play your video, and make sure the WM Capture markers surround the area you’d like to capture. If the Full Screen button is checked in Settings, the entire screen is captured.
Click the Still button.
Your image is saved, and opens in the default editor for .bmp bitmap files. The bmp file is called zzzBmp.bmp and is located in the installation folder.
Note: You can also save a screenshot while you are recording.
How to Schedule a Recording
You can make WM Capture open a program or a web page, and start recording automatically at a preset time or according to a schedule. Here’s how to do it:

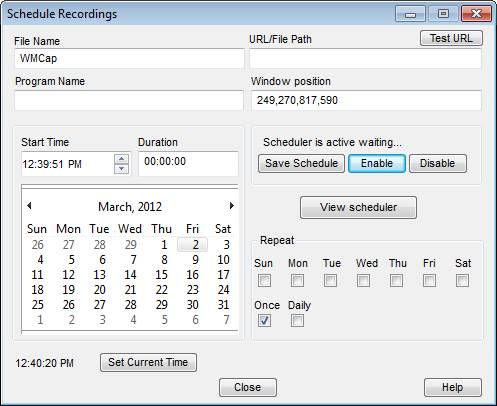

Click Settings, then Scheduler from the top menu, then Open Now. The Scheduler appears:
2. Within the scheduler are these options:
1. File Name: What name to use when saving the file.
2. URL / File Path: What URL to open if recording a video from the web (make sure the video window coordinates did not change).
3. Program Name: What EXE file to open if recording from a Windows application (for example C:\Program Files\wmplayer.exe for Windows Media Player).
4. Window Position: The coordinates of the window to record from (top, left, bottom, right).
Start Time: What time of day to start recording.
5. Duration: How many hours:minutes:seconds to record.
6. Date: Pick the starting date to record from.
7. Daily: Pick the days of the week to record regularly broadcast programs. Select Once if you will be recording just once. Pick Daily if you will be recording seven days a week.
3. The Scheduler also has these action buttons:
Enable: Start running the scheduler so that scheduled items are recorded.
Disable: Stop recording scheduled items.
Save Schedule: Save your scheduled item.
View: View all scheduled items.
Test URL: Open the URL to make sure the program to record you want appears.
Schedule Now: Insert the current time and date into the schedule parameters.
To schedule a recording, set the Start Time, the Duration and a file name for the recorded file. Then click Save Schedule. Multiple recordings can be scheduled the recording times cannot overlap.
Multiple recordings can be scheduled the recording times cannot overlap.
Playing your Recorded Videos
Once you’ve finished recording, you can see your last recorded video by clicking Play.
To see all your recordings, click the View button. The View screen appears:
Double click a file to play it, or select and right-click to play, rename or delete a recording.
Click the Open Output Folder menu option to open a file explorer window for your recorded video files.
Note: On some systems, you may need to use the supplied MPEG-2 player instead of Windows Media Player or other players that may be setup to play MPEG files in your computers. Right click the file name and select Open MPEG Player in the pop up menu.
Adjusting the Volume
The volume of recorded file can be adjusted using the Volume slider. When the Stereo Mix type audio source is used the recording volumes as well as the audio volume of your computer are adjusted. When audio is recorded using the Auto Detect option (available for Vista and Win 7) this slider has no effect on the overall audio volume of your system. The audio is recorded at constant volume even if the computer volume is muted.
Select Windows theme
WINDOWS 7 / VISTA computers:
To increase the performance (speed) of your system and avoid dropping frames consider setting your computer theme to Windows 7 Basic or setting Windows Performance Options to “Best performance” instead of “Best appearance”. “Best appearance” is the default Windows setup. Dropped frames are video frames that are skipped during recording because the processor (CPU) is busy performing Vista video effects. To setup the Best Performance Windows mode click Tools on WM Capture Settings then click Windows Best Performance.
To select or deselect the Windows Basic theme click Tools / Setup Windows theme. Make your selection in the dialog window that pops up.
This section is a reference for the Settings dialog:
Recommended Settings: Use this button to
automatically configure the Audio Settings and Video Settings for the speed
of your PC and desired output quality. Audio Settings: Set the Audio Bit rate as the quality for recorded audio. In general, 64 Kbps is fine for most
recording, but higher bit rates are better, especially when music is
involved. Click Audio Setup /
Test to locate or manually set the best audio recording
inputs on your PC.
Video Settings: Choose the Video Bit Rate, Frames per
second, and Video Format (MPEG-2, MPEG-4 or Windows Media). The Recommended
Settings button will do this for you, but you can manually
adjust these parameters here if you like.
Disable Video Acceleration: Use this option if
you record Windows Media Player or Real Player windows on Windows XP or
lower versions. Otherwise keep this option unchecked.
Turn on or off audio recording. This is useful for making “silent
Video: Turn this option off if you want to make WM Capture into an audio-only
Top Window: This lets you set the recording window on top of other
windows. The window size must be smaller than ½ of the screen area.
Recording File Size / Time: This lets you
limit the time or file size for your recordings. Handy for unattended
Hide WM Capture: Makes the WM Capture window disappear when recording
starts. This is useful for recording full-screen video for example.
Setup Output Folder: Choose the folder on your PC where
recorded files are to be saved.
My registration: Use this option to enter a registration code, or
check your current registration information.
Video Capture Options:
Capture Options from the top menu in Settings to access this. The Enhanced video mode includes enhanced
recording features like dual monitor, pause, video
Basic video is provided for compatibility
with previous versions of WM Capture.
Video Preview – when this button is checked, a
small video window on the main screen shows what is being recorded
The Resize video option can be used to resize the recorded video and is available only with
MPEG-2 video format. Please note that not every width/height combination is
The Set Markers option can be used to fix the recording area to a certain width and height.
Universal Audio Driver
Universal Audio Driver (UAD) to access this option. This
should only be used by XP systems.
Enable: This enables the
use of the Universal Audio driver (for XP only.) On some systems, there may
not be a usable recording input available. The Universal Audio Driver
allows you to record audio on virtually ANY system. You should select this
if the Audio Test fails to locate any available recording input.
Delay Audio by __ milliseconds: In some cases, the
audio and video may be slightly out of sync when using the Universal Audio
Driver. (The amount is site dependent.) You can manually enter a delay to
help the audio and video sync better.
Disable Windows Sounds: Check this option
to disable sounds in Windows, which often interfere with the audio in your
I can’t play MPEG-2 files created
by WM Capture
Some older versions of Windows Media Player
cannot playback MPEG-2 files. In this case you can use WM Capture simple
MPEG-2 player accessible from the VIEW menu or the VLC media player.
Video quality is choppy
To get the best quality video – especially on slower
machines – try the following:
Go to Settings, and make sure you are
using the MPEG-2 video format. You can also try one of the Recommended
Settings options for slower PC’s.
Try recording from
a smaller video window by resizing your player to 1/4 of your screen, or no
more than 640×480 pixels. This won’t affect the video quality (since video
is scaled UP from smaller sizes to fit a full-screen picture). This will
require less computer power to capture, which will make for smoother
Use a lower frame
rate. For example 15 fps or even 10 fps.
On Vista and Win 7
use the “Best Performance” mode instead of “Best Appearance” mode. To
change Windows video mode open Settings / Tools / Windows Best Performance
I’m having trouble recording
For Windows Vista: Use the Auto
Detect option under audio Setup/ Audio Setup.
For Windows XP: On some PC’s, only the Universal Audio Driver will work. Go to Settings/Tools, and select the Universal Audio Driver (UAD).
Use the Universal Audio Driver only if the Test option fails to locate a working audio
recording line. Note that UAD may not work with Internet Explorer or Chrome
browsers on Vista and Win7.
The Universal Audio Driver Option isn’t
working for me
To use the Universal Audio Driver, in some cases you
may need to open WM Capture before opening your browser or video playback application.
The Video Window is all black
when playing back the recording
If this occurs, you will need to disable
“hardware acceleration” on your PC. Here’s how to do it:
Right click on your
Select Properties in the pop-up menu.
In the Display
Property window click Settings,
Move the Hardware
Acceleration slider to NONE.
Click OK in the message box displayed
by the video card.
Click OK to exit
/If this happens while recording a DVD use
a DVD player that plays DVD without using hardware acceleration (for
example VLC Media Player).
I’m not able to play DVD’s any more
since installing WM Capture.
WM Capture disables the video acceleration for Windows
Media Player when installed. This is required for capturing the screen
section where Windows Media plays the video. Otherwise, the recording shows
a black window. This feature can be activated or deactivated in WM
Capture’s settings “Disable Video Acceleration” check box.
Here how to re-enable video acceleration in Windows
Open Windows Media
From the menu., select Tools,
“Video Acceleration” slider to Full and click OK.
get a “Cannot Run Graph” error message
The “Cannot Run Graph” error is related to
the version of DirectX installed on your machine. You need to have version
9 or higher installed in order to run WM Capture. You should make sure you
are running DirectX 9 (or 10 if your graphics card will support it) and
that should take care of the problem. You can update your DirectX from
Microsoft’s site here.
Also, you might want to try uninstalling WM Capture,
restarting your computer and re-installing it. Usually this has to be done for
it to realize that the proper version of DirectX has been installed.
I use Dual Audio recording but I can only
hear one audio channel
WM Capture installs an MPEG-2 audio codec capable of
playing videos with multiple audio channels. Windows Media Player is the
only player we know which can correctly pick this codec when playing back
MPEG-2 recordings. Use WMP to playback dual audio recordings. If you want
to have the two channels mixed in one you should re-record the dual channel
I get a “Cannot install screen capture
This error indicates that the screen capture codec was
not installed in your computer. In some rare instances this may be the
result of very restrictive security software not allowing activeX components in your system. However this problem
can also occur on some custom Windows installation (especially Windows 7).
Make sure the file regsvr32 located in the folder C:\Windows\SysWOW64 and
the regsvr32 file located in C:\Windows\System32 have
the same version.
I get “Recording error (x013). WM Capture will
This error indicates that recording could not be
started in less than 10 seconds for an unspecified reason. Disconnect the
second monitor, use Windows Media video format, use
Basic Video instead of Enhanced Video.
